PwnCNC/Delixi VFD Keypad Sidecar (Maker Files)

MAKER FILES ONLY

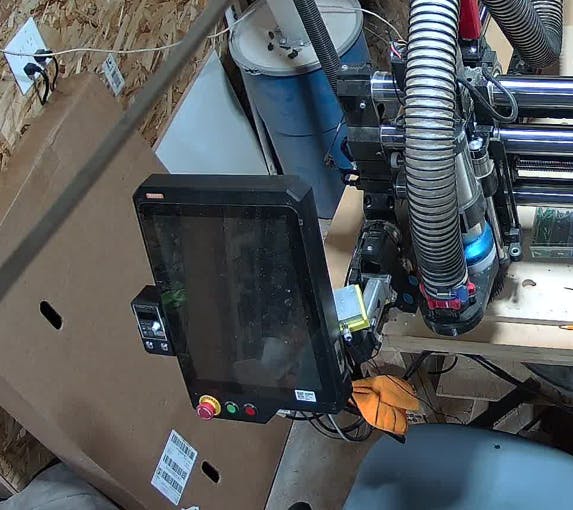

Mount your PwnCNC VFD Keypad on your G3 Touch with Park and Home buttons.  It will work with any Delixi CDI-EM60 series VFD keypad.

This sidecar is different than others on the market.  It doesn't prevent opening the G3 Touch enclosure. Simply grab the housing and pull it away from the mounting plate. It's held in place by magnets and reinforced by simple cleats.

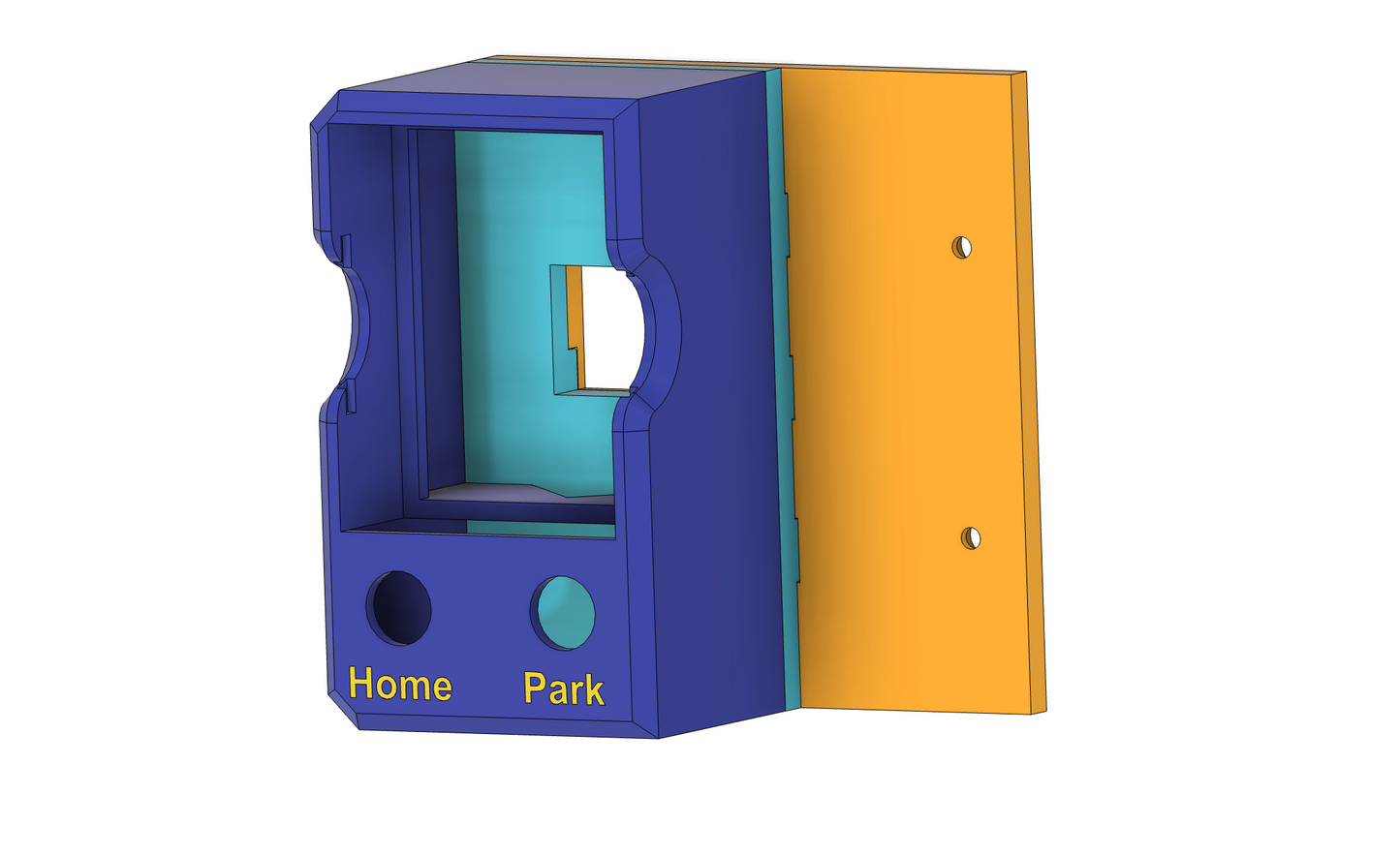

Its compact design matches the design of the G3 Touch enclosure, so it looks nice too.

We print ours as a multi-color print on an X1 Carbon with Charcoal PLA Matte for the housing, back plate, and mounting plate, and white PLA Matte for the text, because the finish looks good.

To assemble the electronics, you'll need:

• One 5.6k resistor: https://amzn.to/48lP1Hn
• One Ethernet cable: https://amzn.to/48qhHih
• Six 6mm M3 cap screws: https://amzn.to/3UGKXy4
• Eight 8x3mm magnets: https://amzn.to/49zNEpE
• Two 12mm momentary press buttons: https://amzn.to/3HXltFk (The holes are 12mm, so at 11.8 these fit perfectly, and we like they way the light up. We'd suggest blue for Park and white for Home)
• 4ft of 22/4 stranded wire: https://amzn.to/3whnyJI
• Four small ferrules: https://amzn.to/3SytLs4
• Heat shrink: https://amzn.to/3I0vQIl
• M3 threaded inserts: https://amzn.to/42EV094

Tool:

• Soldering iron or hot air station: https://amzn.to/3W04Hxj

Optional:

• Helping hands: https://amzn.to/3uzAGJw

The above links are largely affiliate links. I get paid a small amount of sales from these links. I appreciate you using them if you plan to purchase these items, but of course, you can source your materials anywhere.
