Big Suck Dust Boot

Big Suck Dust Boot

$140.85
$140.85
Sale Sold out

"Big Suck is an enormous improvement without sacrificing the vacuum force when applying a rear installation.", Arnold W.

Size
Brush
Spare Brush Track

Get maximum performance from your dust boot!

This is the most powerful dust boot we have ever used. It's heavily inspired by PwnCNC's v9 dust boot.

It has the following advantages/improvements:

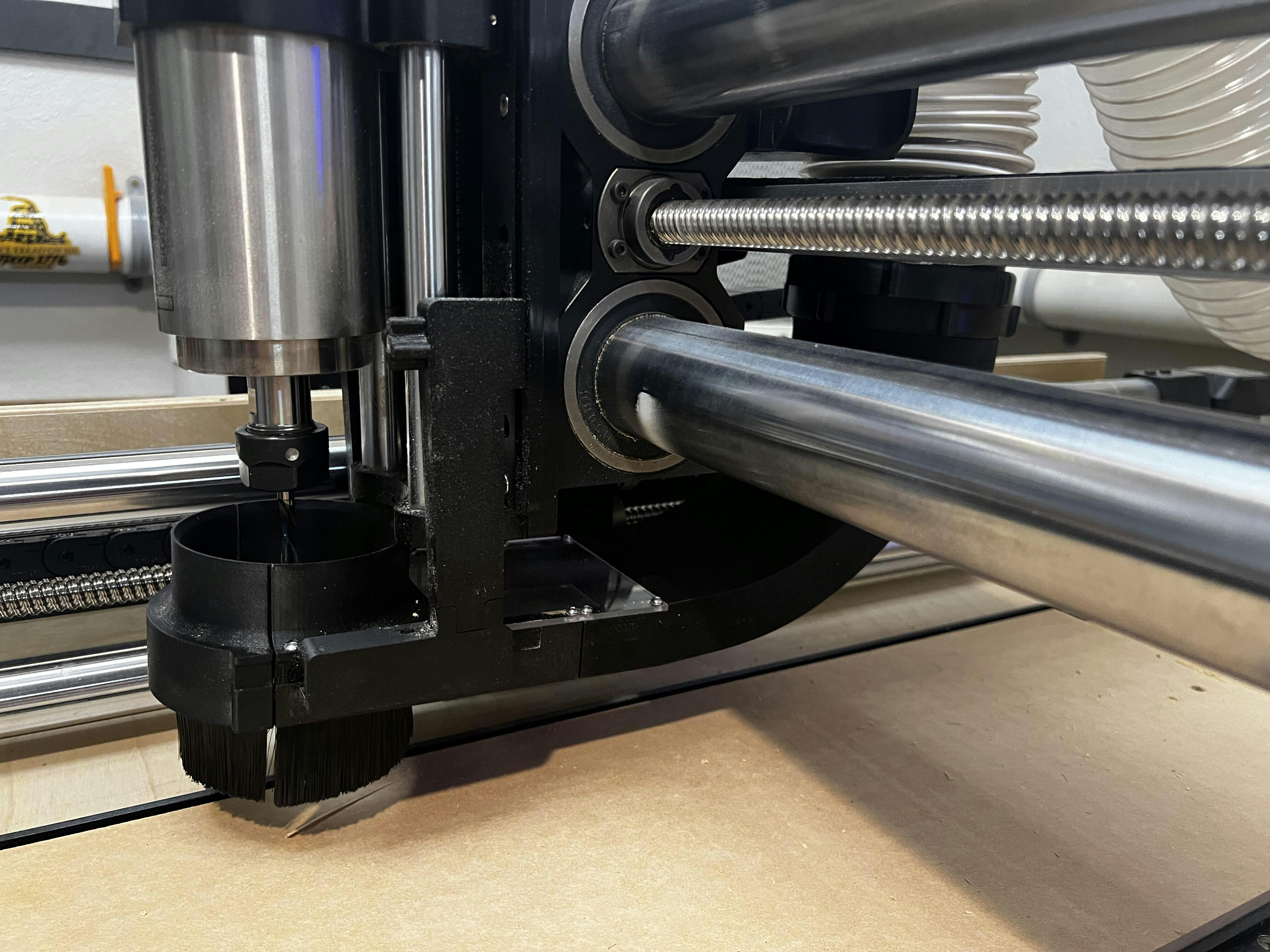

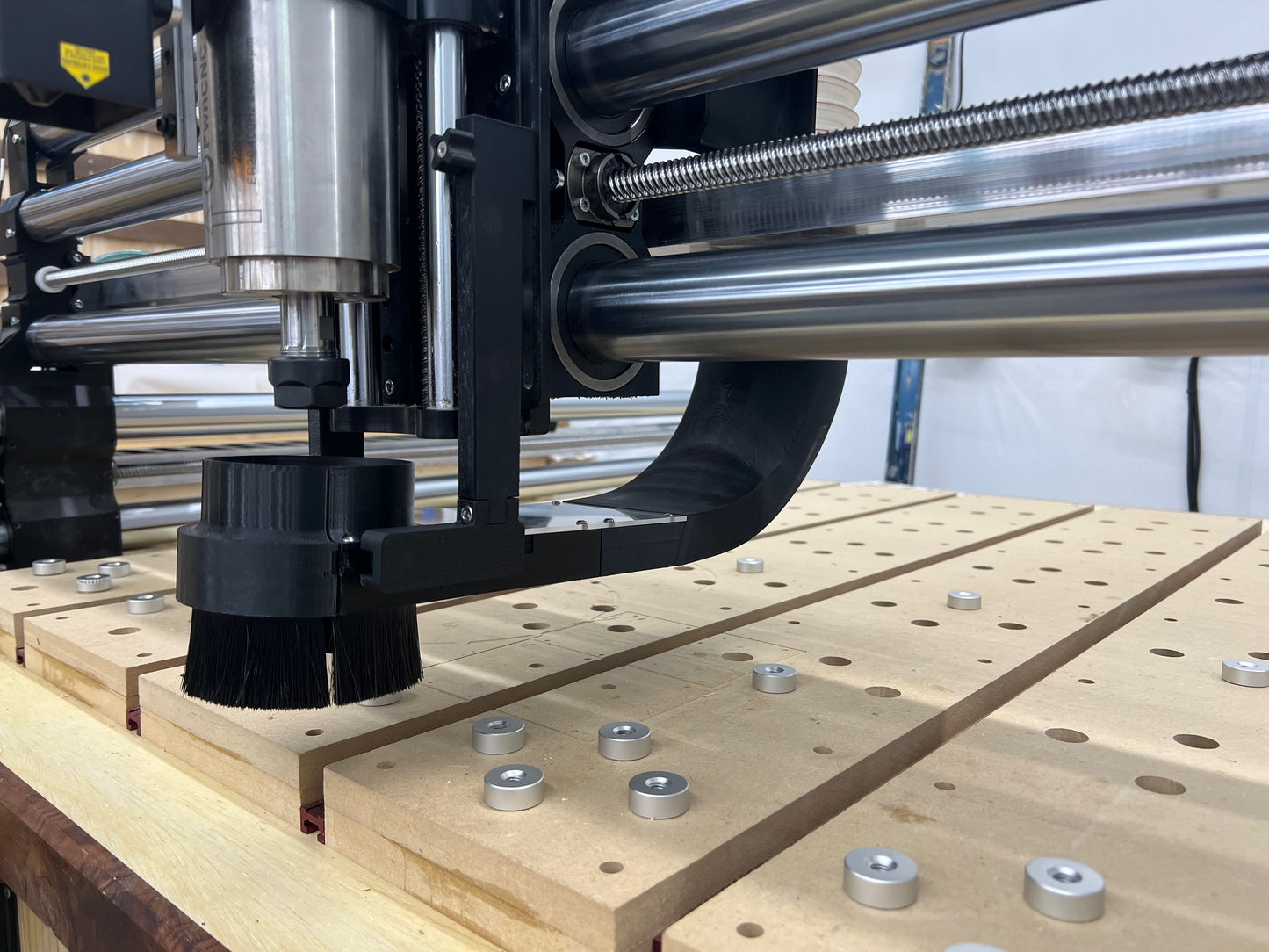

- As a rear mount dust boot, it minimally obstructs your view of the tool working on your piece.

- It, and its dust hose, can't crash into your G3 Touch when homing.

- The Big Suck works with the stock drag chains and it's deep enough not to rub against the trough used by our 18x50 drag chain brackets

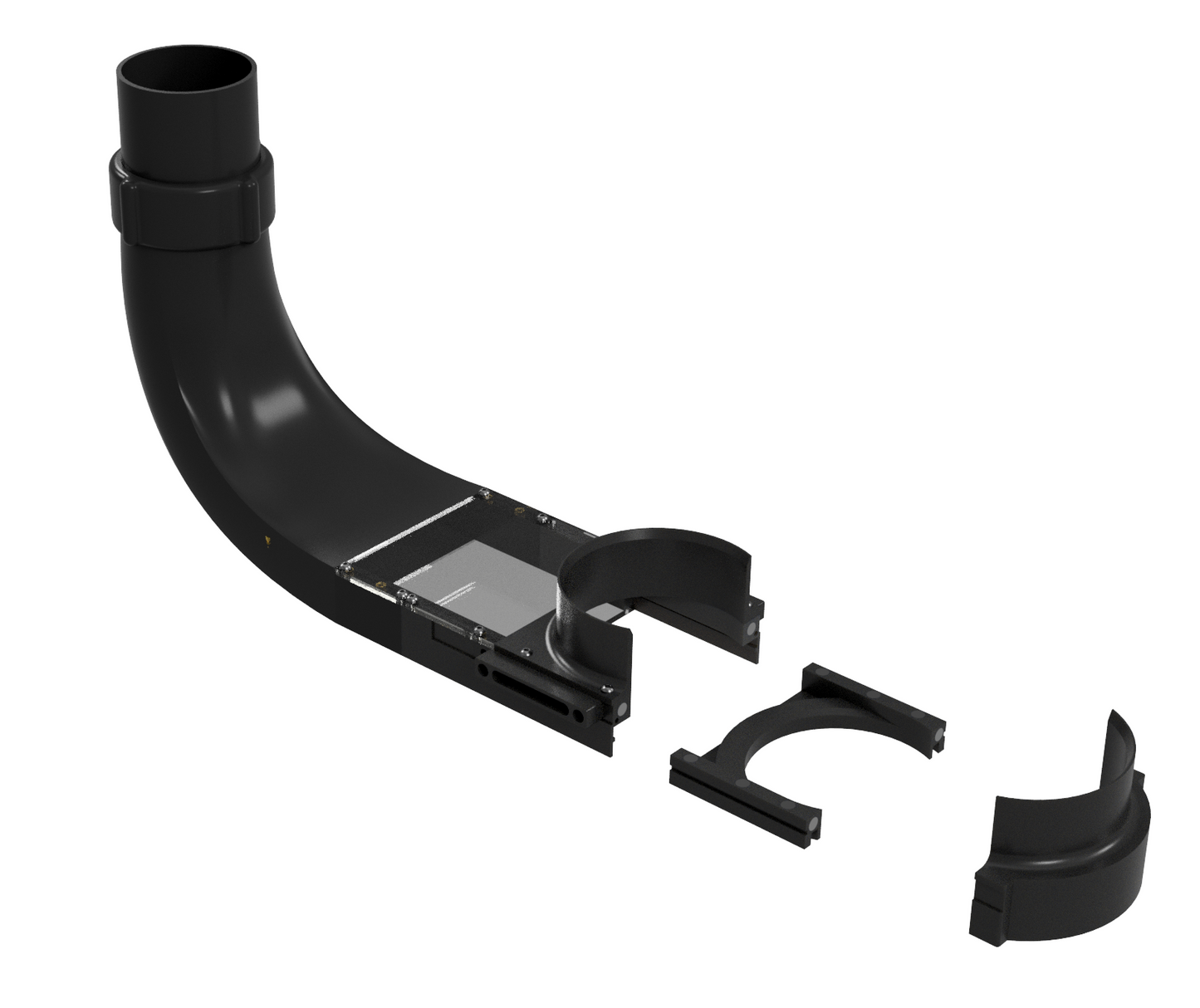

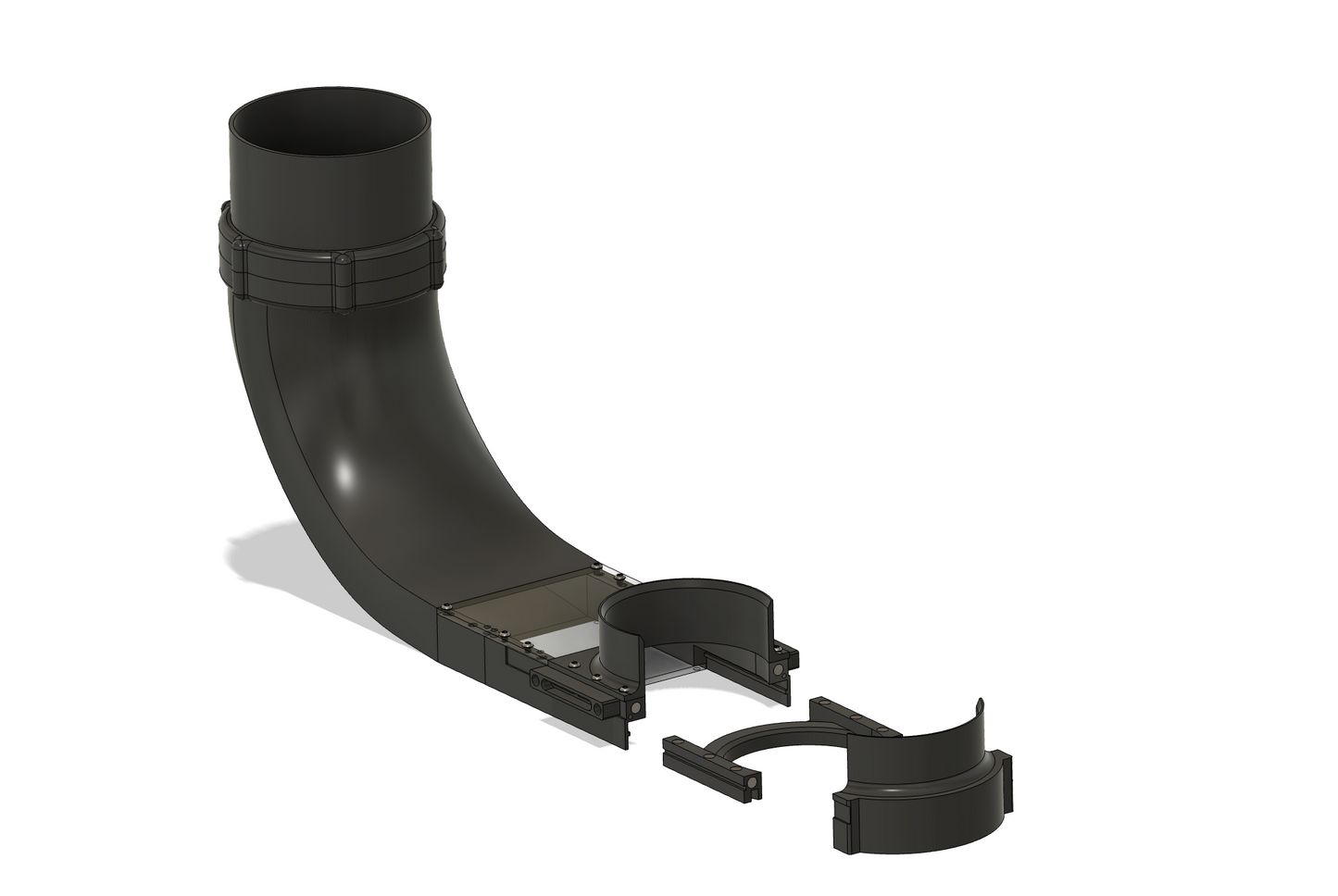

- The brush can be easily replaced via a swappable brush insert, allowing for quick changes between brush lengths

- The raised collar forces more suction to the workpiece when the spindle isn't plunged down far enough to seal the gap.

- The curved reduces friction, providing even more suction to the workpiece.

- It boasts a 4" dust collection port for maximum airflow.

- The wings recess slightly into the body, adding rigidity to their horizontal orientation

FAST SHIPPING * FREE SHIPPING

To assemble the Big Suck, you'll need:

- Z Independent Bracketing System for the Z-20:  https://pwncnc.myshopify.com/products/z-independent-bracketing-system?variant=41201260298379&ref=qpV7vrEk5xLGzo

You'll also need some way to take the weight of the hose off of the back end.   We recommend:

- PwnCNC Ultimate Hose Clamp 4" Vertical: https://pwncnc.myshopify.com/products/ultimate-hose-clamp-attachment?variant=39676967649419&ref=qpV7vrEk5xLGzo

- PwnCNC Ultimate Hose Clamp Base: https://pwncnc.com/products/ultimate-hose-clamp-base?_pos=1&_sid=9c391afbf&_ss=r&variant=41200972562571&ref=qpV7vrEk5xLGzo

- PwnCNC Extension Arms: https://pwncnc.com/products/ultimate-hose-clamp-arms?variant=41745034903691&ref=qpV7vrEk5xLGzo *The hose will be most vertical with one 2" adapter on the Big Suck. The Big Suck will need 3" or 4" total.

If you need even more clearance behind your X gantry, we offer maker files for the Big Suck Plus, which supports the 25x90mm drag chain.  We can also assemble the Big Suck for you as a custom request.

Many of the above links are affiliate links. I make a small amount from sales through these links. I'd appreciate it very much if you'd use these links if you purchase these items. Of course, you're free to source materials anywhere you like.

View full details

Customer Reviews

Based on 14 reviews
100%
(14)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100.0
100.0
J
Jeff
great dust boot

great design for a dust boot. this allow me to see my bit in action if i want but it provides excellent dust extraction

S
Shawn
Big Suck dust boot

I am very impressed with the Big Suck dust boot. The main part of the dust is on the backside (opposite the operator). Bits can be changed very easily after taking from part off dust boot. Very little sawdust to vacuum after carve is finished.

D
Darrell
Easy to install

Easy to install, works great! I've also been using with a inline fan as a fume extractor for my J tech lasers, thinking a extension to snap on the front to get closer to the laser would make a good accessor.

R
Royce Achterberg
Excellent Rear Mount Dustboot

I have had several dustboots at this point in my CNC journey and know what I am looking for at this point. This IS IT. For a non-ATC boot, this is the one. I like the rear mount dust boots as I film a lot of my work, I also like it just from the concept of being able to see what is going on. The front mount boots cover to much of the carving area. I also look for good CFM suction boots, and this is a pretty dang good one. With a 4" hose, it does collapse down where the clear acrylic is, but it is not nearly as significant as other designs. Stability is also paramount to me and this one achieves that well.

Way to go Ugly Dog, I really love this boot!

User picture
J
John Deckard

Have had several dust boots and this is
this one is the best.
