PwnCNC/Delixi VFD Keypad w/ MOS Sidecar (Maker Files)

MAKER FILES ONLY

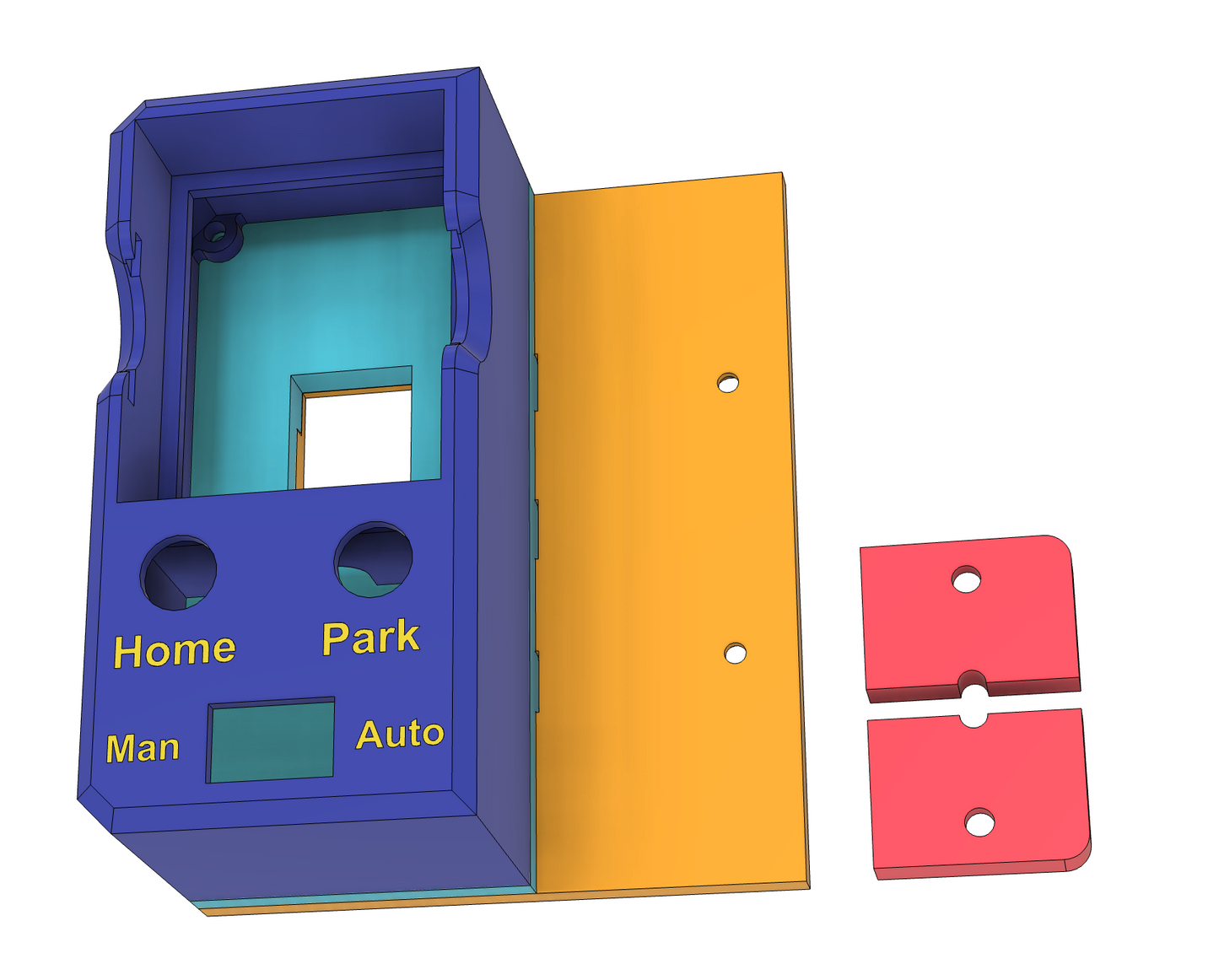

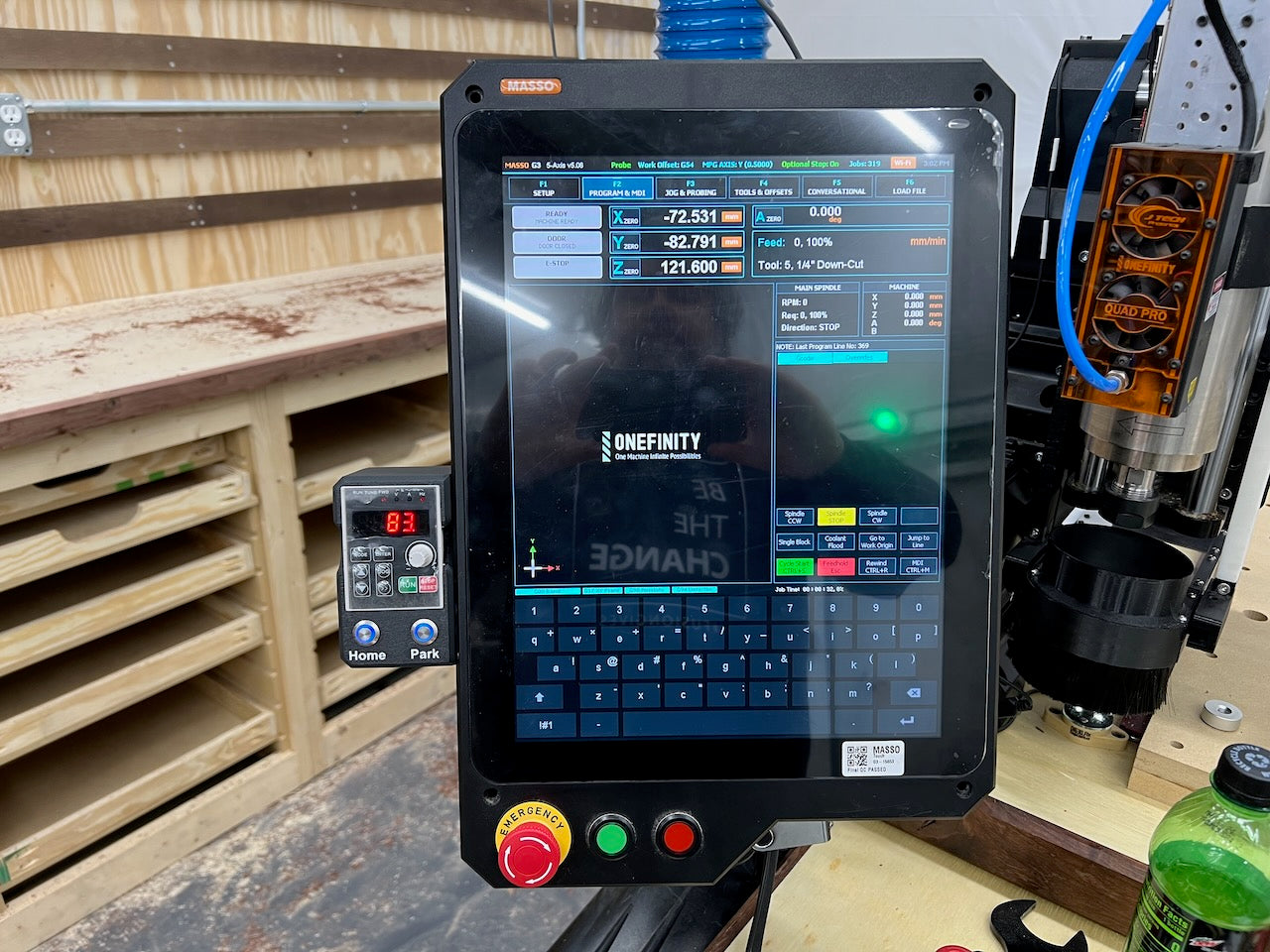

Mount your PwnCNC VFD Keypad on your G3 Touch with Park and Home buttons.  It will work with any Delixi CDI-EM60 series VFD keypad.  This model also allows you to remote your VFD's MOS (Manual Override Switch).

This package also includes a cover for the old switch location in the VFD enclosure so you don't have an empty hole where the switch used to be.

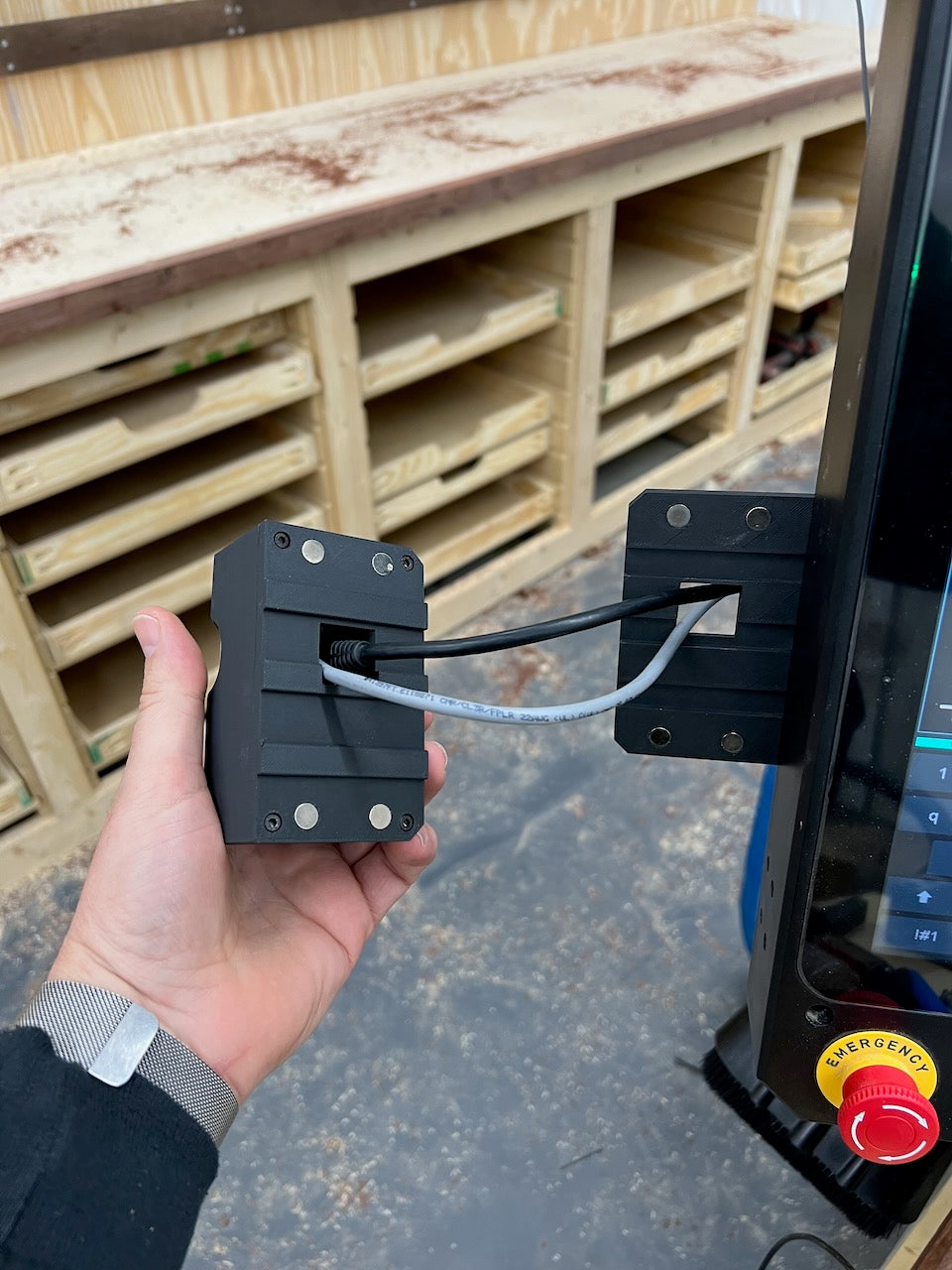

This sidecar is different than others on the market.  It doesn't prevent opening the G3 Touch enclosure. Simply grab the housing and pull it away from the mounting plate. It's held in place by magnets and reinforced by simple cleats.

Its compact design matches the design of the G3 Touch enclosure, so it looks nice too.

We print ours as a multi-color print on an X1 Carbon with Charcoal PLA Matte for the housing, back plate, and mounting plate, and white PLA Matte for the text, because the finish looks good.

To assemble the electronics, you'll need:

• One 5.6k resistor: https://amzn.to/48lP1Hn
• One Ethernet cable: https://amzn.to/48qhHih
• Six 6mm M3 cap screws: https://amzn.to/3UGKXy4
• Eight 8x3mm magnets: https://amzn.to/49zNEpE
• Two 12mm momentary press buttons: https://amzn.to/3HXltFk (The holes are 12mm, so at 11.8 these fit perfectly, and we like they way the light up. We'd suggest blue for Park and white for Home)
• 4ft of 22/4 stranded wire: https://amzn.to/3whnyJI
• Four small ferrules: https://amzn.to/3SytLs4
• Heat shrink: https://amzn.to/3I0vQIl
• M3 threaded inserts: https://amzn.to/42EV094
• MOS extension cables are sold separately by PwnCNC here: https://pwncnc.com/products/mos-extension-cable?ref=qpV7vrEk5xLGzo&variant=41745658314891
