Huanyan VFD Keypad Sidecar
Huanyan VFD Keypad Sidecar

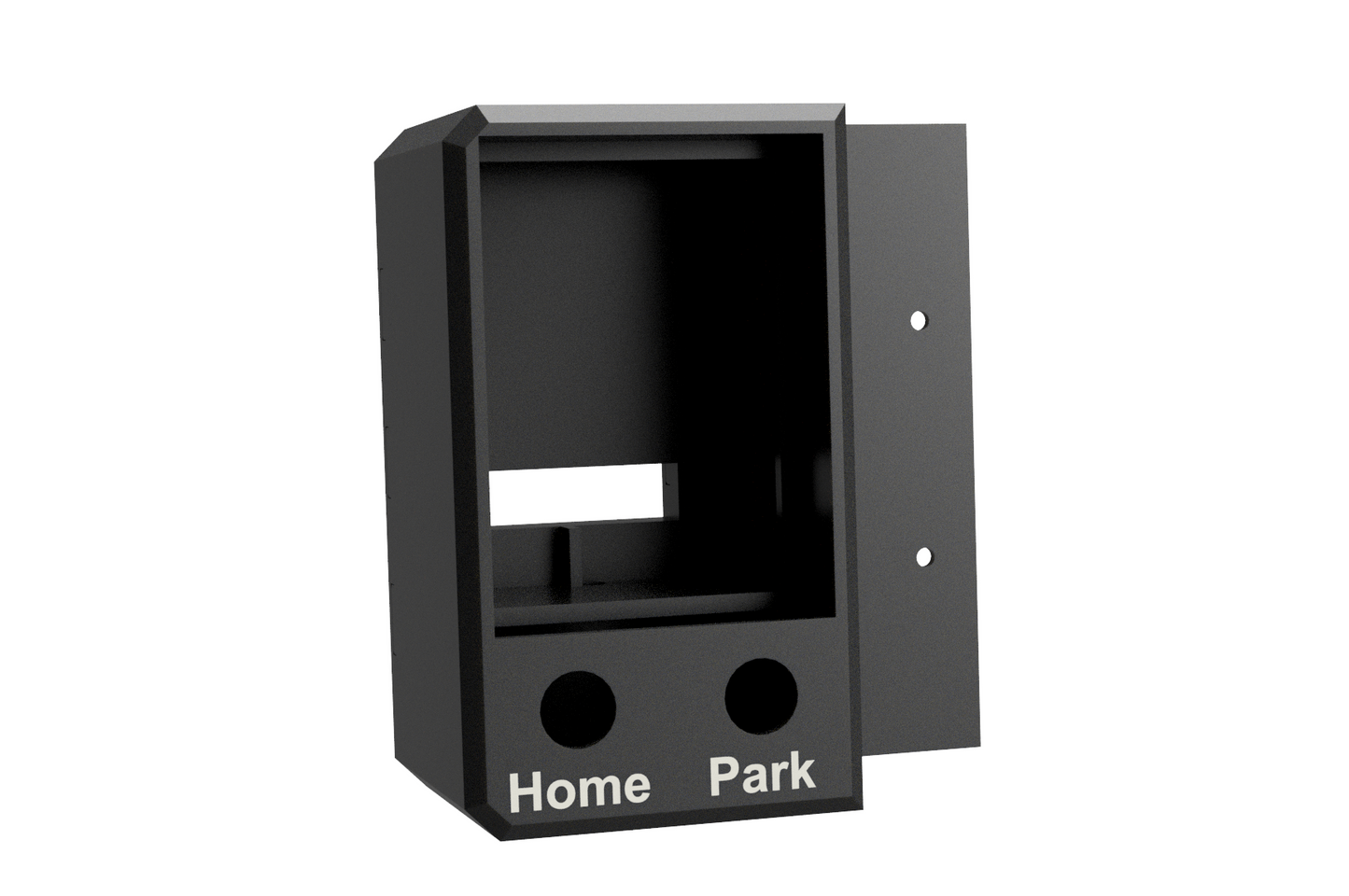

Mount your Huanyan VFD keypad on your G3 Touch with Park and Home buttons.This sidecar is different than others on the market. It doesn't prevent opening the G3 Touch enclosure. Simply grab the housing and pull it away from the mounting plate. It's held in place by magnets and reinforced by simple cleats.
Its compact design matches the design of the G3 Touch enclosure, so it looks nice too.
We print them with Charcoal PLA Matte for the housing, back plate, and mounting plate, and white PLA Matte for the text, because the finish looks good.
To assemble the electronics, you'll need (Makers Pack Contents):
- One 5.6k resistor: https://amzn.to/48lP1Hn
- Six 6mm M3 cap screws: https://amzn.to/3UGKXy4
- Eight 8x3mm magnets: https://amzn.to/49zNEpE
- Two 12mm momentary press buttons: https://amzn.to/3HXltFk (The holes are 12mm, so at 11.8 these fit perfectly, and we like the way the light up.
- 4ft of 22/4 stranded wire: https://amzn.to/3whnyJI
- Four small ferrules: https://amzn.to/3SytLs4
- Heat shrink: https://amzn.to/3I0vQIl
- M3 threaded inserts: https://amzn.to/42EV094
Not included in the Makers Pack, but also required:
- Ribbon cable extension: https://amzn.to/44LZLyG
Tool:
- Soldering iron or hot air station: https://amzn.to/3W04Hxj
Optional:
- Helping hands: https://amzn.to/3uzAGJw
The above links are largely affiliate links. I get paid a small amount of sales from these links. I appreciate you using them if you plan to purchase these items, but of course, you can source your materials anywhere.
These are often made to order, so it could take a couple days to ship.
