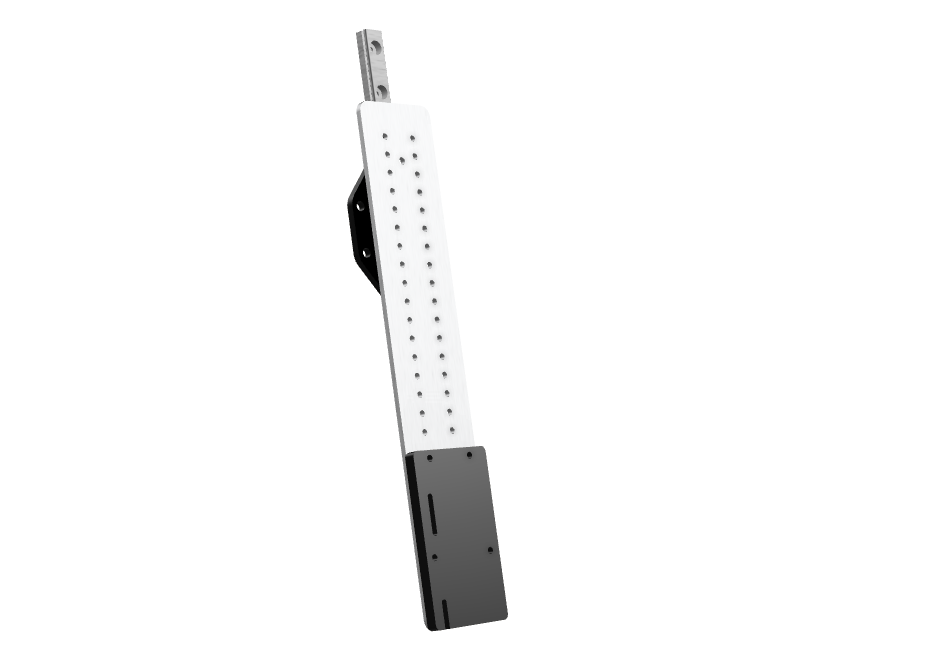

This is a free download that contains the files necessary to build your own laser slide mount for the 24W J-Tech laser. If you wanted to design a new back, you could also use it for the 44W laser.
It includes;
- STL & STEP for the Adapter Plate (to attach it to the spindle mount)
- STL & STEP for the laser back plate
- STEP & DXF for the flat bar
To assemble it, you need:
- One 300mm linear rail: https://amzn.to/45CLYut
- M5x10mm cap screws (if mounting it directly to the spindle mount): https://amzn.to/3KRHKpo
- M3x6mm cap screws: https://amzn.to/4bkkzii
- M3x4x5mm threaded inserts: https://amzn.to/45Aaj4c
- M5x10mm thumbscrew: https://amzn.to/45y5w3n
- Twelve 8x3mm magnets: https://amzn.to/3VHXu3w
- One piece of 1/8" thick 2" flat bar:https://amzn.to/3zemdVq
- One 6mm OD push-connect coupler: https://amzn.to/45Dj9OF
- Super glue to hold the magnet in: https://amzn.to/3VSg7mk
- 3D printing tap kit: https://amzn.to/3XB28mq
