PwnCNC/Delixi VFD Keypad Sidecar w/ MOS
PwnCNC/Delixi VFD Keypad Sidecar w/ MOS
"Well-made and easy to install. Highly recommended!", Walter O.
Save time with physical buttons!

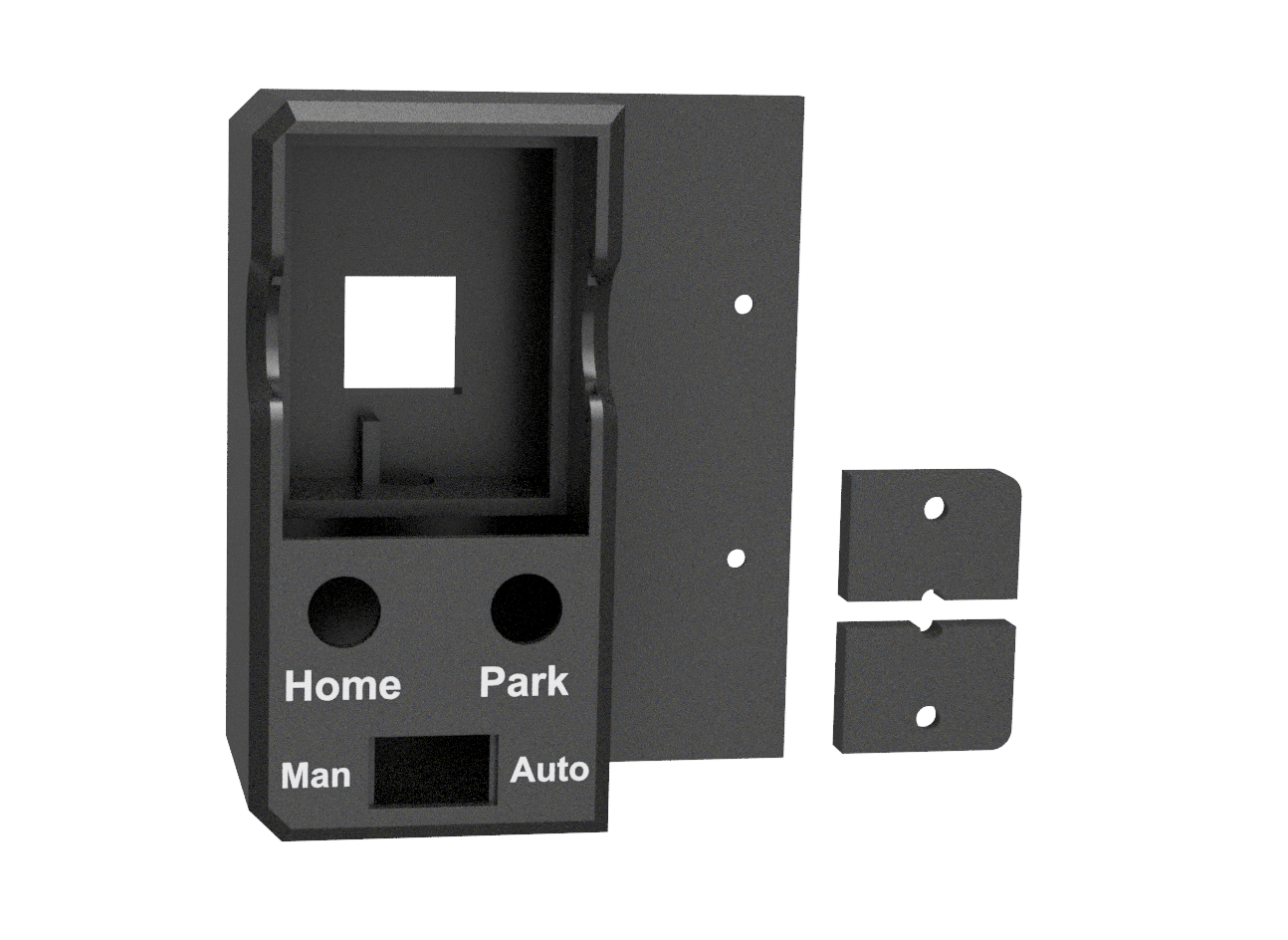

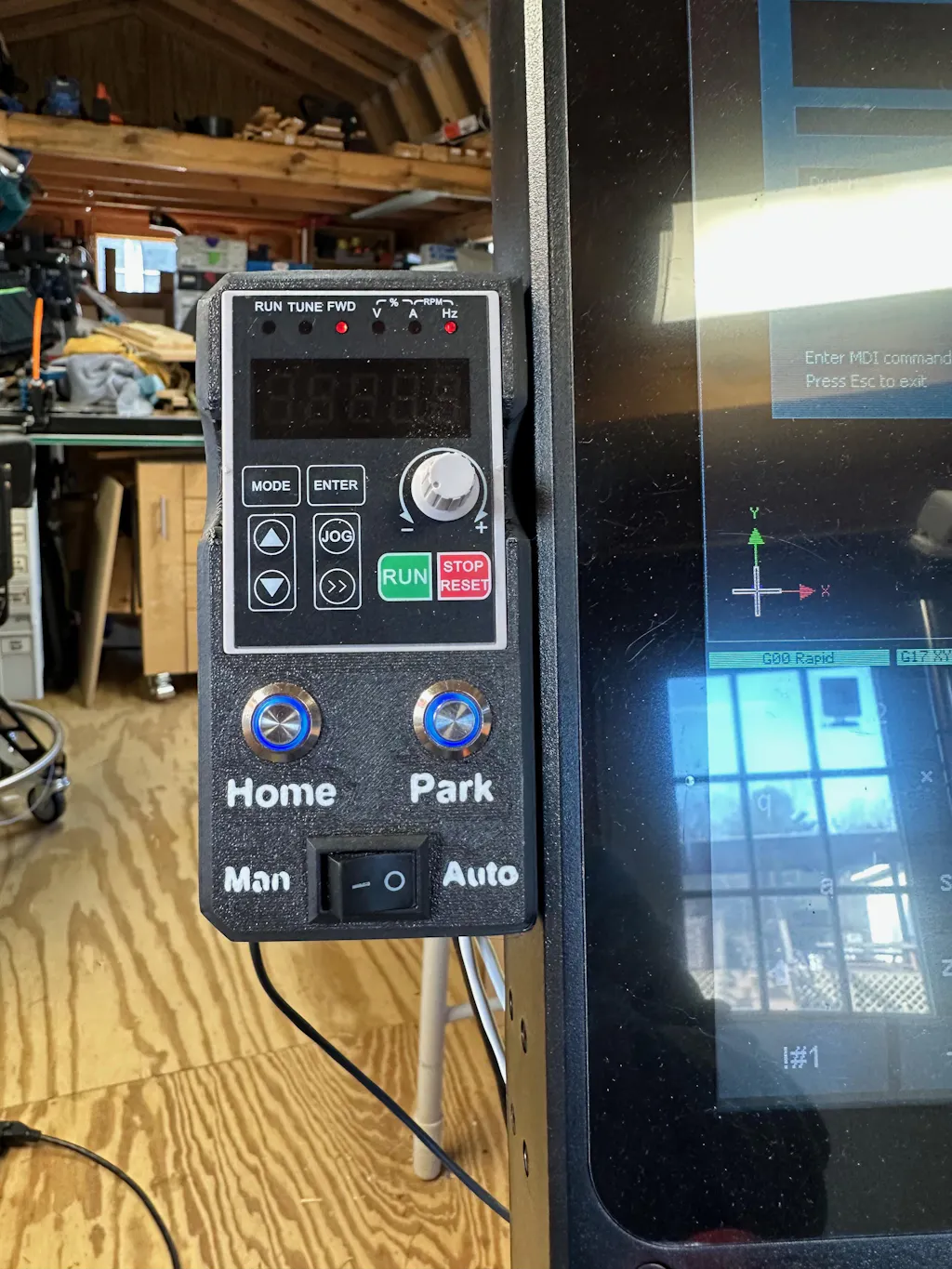

Mount your PwnCNC VFD Keypad on your G3 Touch with Park and Home buttons. It will work with any Delixi CDI-EM60 series VFD keypad, and this model also allows to remove your MOS (Manual Override Switch).
This sidecar is different than others on the market. It doesn't prevent opening the G3 Touch enclosure. Simply grab the housing and pull it away from the mounting plate. It's held in place by magnets and reinforced by simple cleats.
The installation is a breeze, not the others, with just wires to connect.
Its compact design matches the design of the G3 Touch enclosure, so it looks nice too.
We even ship this unit with a cover for the old switch location in the VFD enclosure so you don't have an empty hole where the switch used to be.
MOS extension cables are sold separately by PwnCNC here: https://pwncnc.com/products/mos-extension-cable?ref=qpV7vrEk5xLGzo&variant=41745658314891
FAST SHIPPING * FREE SHIPPING * EASY INSTALLATION
We print them with Charcoal PLA Matte for the housing, back plate, and mounting plate, and white PLA Matte for the text, because the finish looks good.
To assemble the electronics, you'll need (Makers Pack Contents):
- One 5.6k resistor: https://amzn.to/48lP1Hn
- One Ethernet cable: https://amzn.to/48qhHih
- Six 6mm M3 cap screws: https://amzn.to/3UGKXy4
- Eight 8x3mm magnets: https://amzn.to/49zNEpE
- Two 12mm momentary press buttons: https://amzn.to/3HXltFk (The holes are 12mm, so at 11.8 these fit perfectly, and we like the way the light up.
- 4ft of 22/4 stranded wire: https://amzn.to/3whnyJI
- Four small ferrules: https://amzn.to/3SytLs4
- Heat shrink: https://amzn.to/3I0vQIl
- M3 threaded inserts: https://amzn.to/42EV094
Tool:
- Soldering iron or hot air station: https://amzn.to/3W04Hxj
Optional:
- Helping hands: https://amzn.to/3uzAGJw
The above links are largely affiliate links. I get paid a small amount of sales from these links. I appreciate you using them if you plan to purchase these items, but of course, you can source your materials anywhere.
These are often made to order, so it could take a couple days to ship.
